LV ABC/Aerial Bundle Conductor (Self Supporting and Supporting Core) 4x50mm2 4x50sqmm Service Drop Quadruplex

FOB Reference Price:Get Latest Price
$0.10 - $1.00 / Kilometers | 200 Kilometer/Kilometers (Min. Order)
Lead Time:
Quantity(Kilometers) 1 - 1000000 >1000000
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
Jiapu
Model Number:
PMZ
Insulation Material:
XLPE/PVC
Type:
LV/MV/HV
Application:
Overhead
Conductor Material:
Aluminum/Copper
Jacket:
PVC/PE
Certificate1:
ISO
Certificate2:
CE
Certificate3:
SABS
Cores:
Multi Cores
Cross Section:
4-600 SQMM like 4mm2 6mm2 16mm2
Conductor Type:
Plain circular compacted stranded
No. of Core:
1,2,3,4,5,3+2,4+1
Supply Ability
Supply Ability:
6866 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
wooden drum or as your request
Port
Qingdao port
Lead Time :
Quantity(Kilometers) 1 - 1000000 >1000000
Est. Time(days) 30 To be negotiated



aerial electrical wire  abc cable

Aerial Bundle Cable (ABC cable), 0.6/1KV, XLPE/PVC insulation, Aluminum Conductor

Product Description



LV ABC/Aerial Bundle Conductor (Self Supporting and Supporting Core)

4x50mm2  4x50sqmm

------Service Drop Quadruplex



Features
  • 600/1000V to 12.7/22kV
  • Aluminium Conductors
  • Low Voltage ABC has a UV Stable XLPE Insulation
  • Medium Voltage ABC is Sheathed with a UV Stable PE
  • Made to SANS or other National or International Standards



Abc Cable (Aerial Bundled Cable ) Electric Wire Overhead Insulated   Aerial Twisted Cable

Voltages:0.6/1kV,6/10kV,19/33kV

 1.Applications:

Primarily used for overhead service applications such as street lighting. Outdoor lighting, and temporary service for construction. To be used at voltages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75°c for polyethylene insulated conductors or 90°c for crossliked polyethylene(XLPE) insulated conductors.



2.Construction:

Concentric strand or compressed 1350-H19 conductor, poly- ethylene or cross linked polyethylene insulation,concentric strand AAC, ACSR or 6201 alloy neutral messenger.



3.Type of XLPE(PE) insulatedabc cable (service drop)

XLPE(PE) insulatedabc cable (service drop)covers mainly three types:

Duplex Service Drop

Triplex Service Drop

Quadruplex Service Drop



The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor , etc. And we can still produce the cables according to the request of customers.



4.Detaild Introduction of XLPE(PE) insulated abc cable (service drop)



4.1  Duplex Service Drop



Applications

To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75 maximum.



4.2 Triplex Service Drop

 Applications

To supply power from the ulility`s lines to the consumer`s weatherhead. For service at 600 volts or less(phase to phase ) at a conductor temperature of 75 maximum for PE insulation or 90 maximum for XLPE insulation .



4.3 Quadruplex Service Drop

 Applications

Used to supply 3 phase power , usually from a pole-mounted transformer to the use`s servic head where connection to the service entance cable is made . To be used at voltages of 600 volts or less phase to phase and at conductor temperature not to exceed 75 for PE insulated conductors or 90 for XLPE insulated conductors.



5.Standards
1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.
3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.
5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
6. Duplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474





6.Cable style as following :



ABC cable

16 mm 2 * 2C

( AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70

16 mm 2 * 4C

3*(AL7/1.70+PE O.D.7.10) + AL7/1.70 or + AL6/1.70+G1/1.70

25 mm 2 * 2C

( AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12

25 mm 2 * 4C

3*(AL7/2.12+PE O.D.8.90) + AL7/2.12 or + AL6/2.12+G1/2.12

35 mm 2 * 2C

( AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50

35 mm 2 * 4C

3*(AL7/2.50+PE O.D.10.0) + AL7/2.50 or + AL6/2.50+G1/2.50

50 mm 2 * 2C

( AL19/1.78+PE O.D.11.7) + AL19/1.78

50 mm 2 * 4C

3*(AL19/1.78+PE O.D.11.7) + AL19/1.78

70 mm 2 * 2C

( AL19/2.12+PE O.D.13.5) + AL19/2.12

70 mm 2 * 4C

3*(AL19/2.12+PE O.D.13.5) + AL19/2.12

95 mm 2 * 2C

( AL19/2.50+PE O.D.15.8) + AL19/2.50

95 mm 2 * 4C

3*(AL19/2.50+PE O.D.15.8) + AL19/2.50



CoresNominal cross-sectional areaPhase Conductors
insulation
Dia. Of cableR. of conductors at 20°CBreak strength of conductor
Ω/kmKN
3C+1Cmm2Thickness (mm)mmPhase coresNeutral coresPhase coresNeutral cores
3C+1C3x25+54.61.423.571.20.63016.616.6
3C+1C3x35+54.61.626.080.8680.63016.616.6
3C+1C3x50+54.61.628.150.6410.63016.616.6
3C+1C3x70+54.61.832.150.4430.63016.616.6
3C+1C3x70+54.61.832.150.4430.63016.616.6
3C+1C3x70+701.832.750.4430.50020.520.5
3C+1C3x95+701.835.780.320.50020.520.5
3C+1C3x120+701.837.930.2530.50020.520.5
3C+1C3x120+701.837.930.2530.50020.520.5
3C+1C3x120+951.839.260.2530.34327.527.5
3C+1C3x150+951.941.810.2060.34327.527.5







Packaging & Shipping

 Wooden drum or as your request





Company Information



We can design and manufacture many kinds of electrical wires and cables in accord with different standard,such as ASTM ,IEC,BS,DIN, CSA,NF,AS/NZS etc.;



Our main products are as follows:

1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;

2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;

3)PVC Insulated (Flexible ) Wire ;

4)  PVC Insulated and Sheathed (Armoured) Power Cable;

5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;

6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;



Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, such as South America,Central America,North America,Europe,Australia,Middle East, South-East Asia, Africa and so on. Welcome your OEM and ODM orders.



FAQ

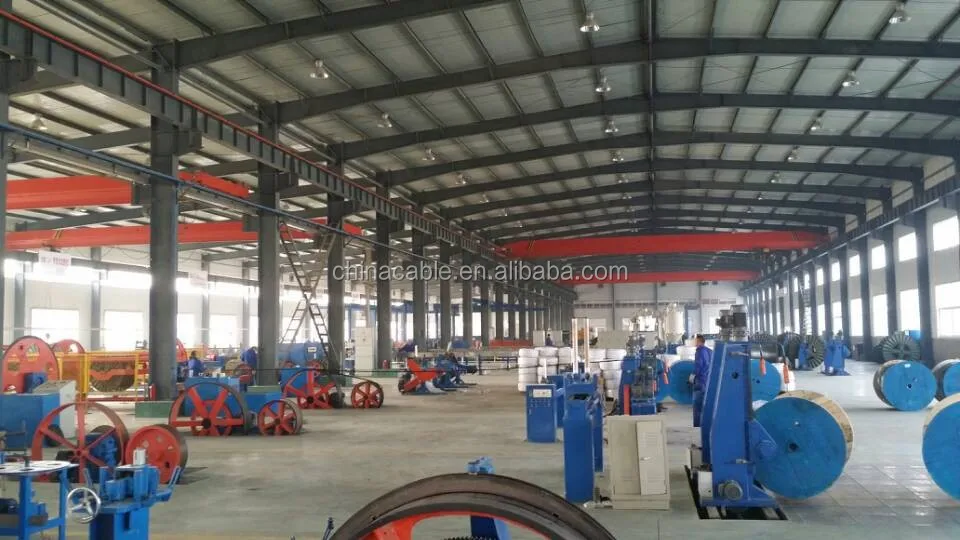

Q Where are we and what does our factory look like?

A:Our factory is located in Xinxiang City,here is the photo of factoy

Q:Do we have exprienc in cable field?
A:Yes!We uauslly take part in Exhibitions both domestic and abroad.See here

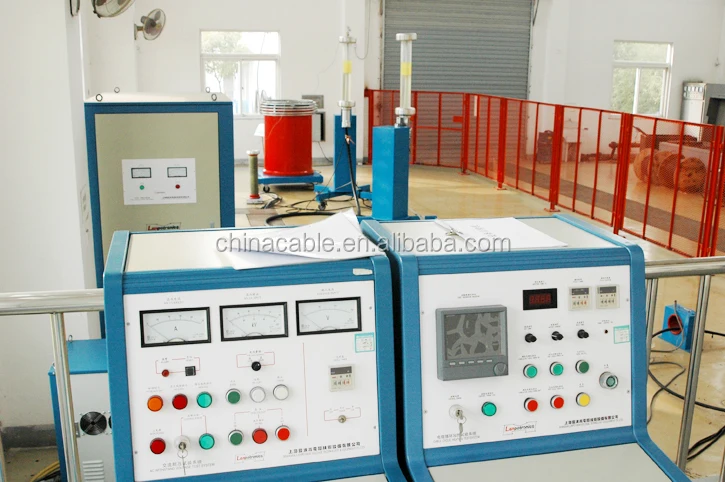

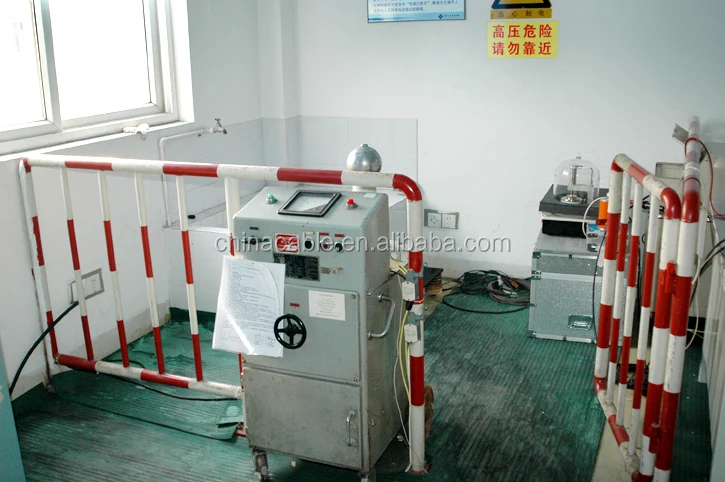

Q:Do we have test machines?
A:Yes!

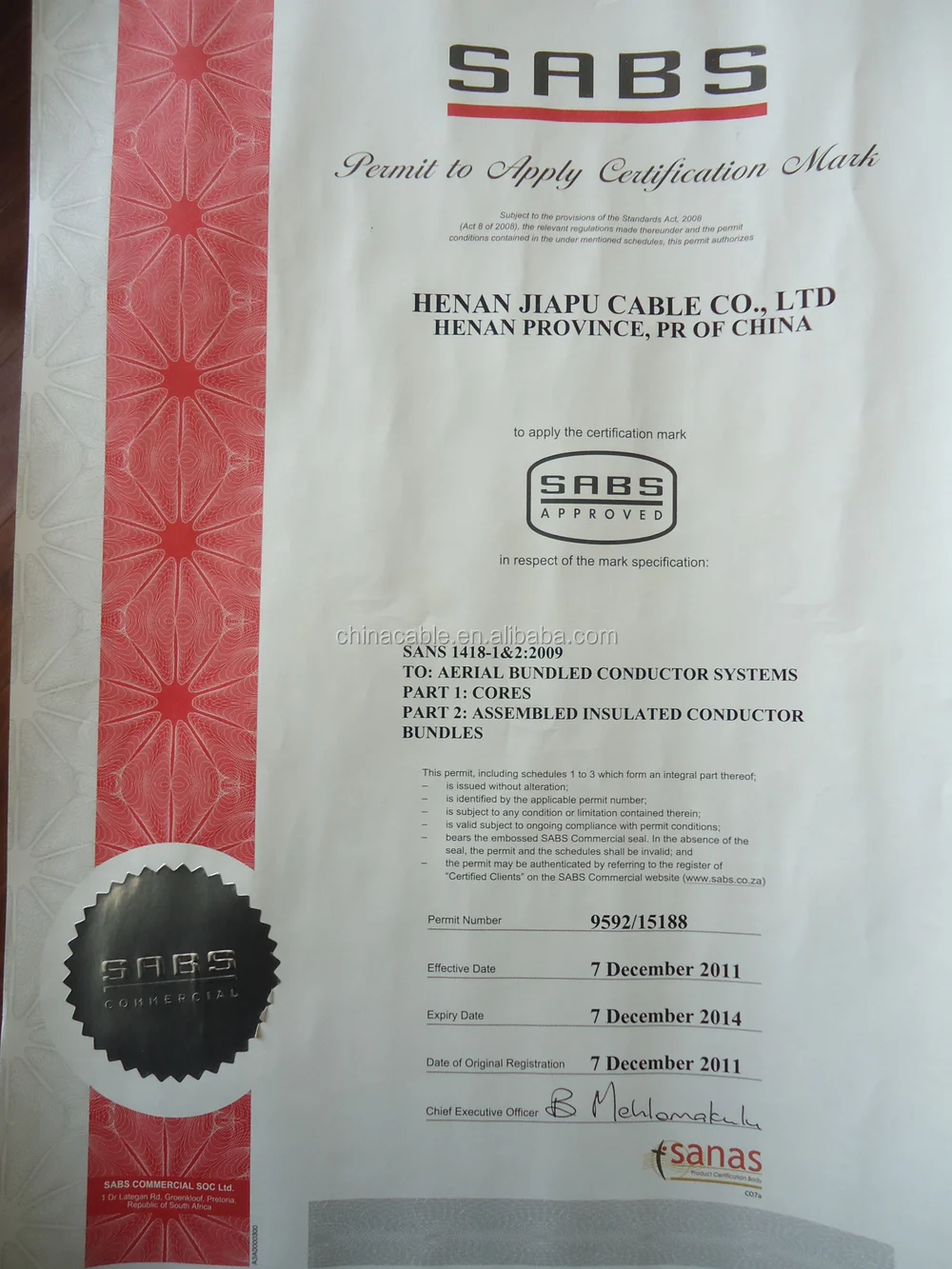

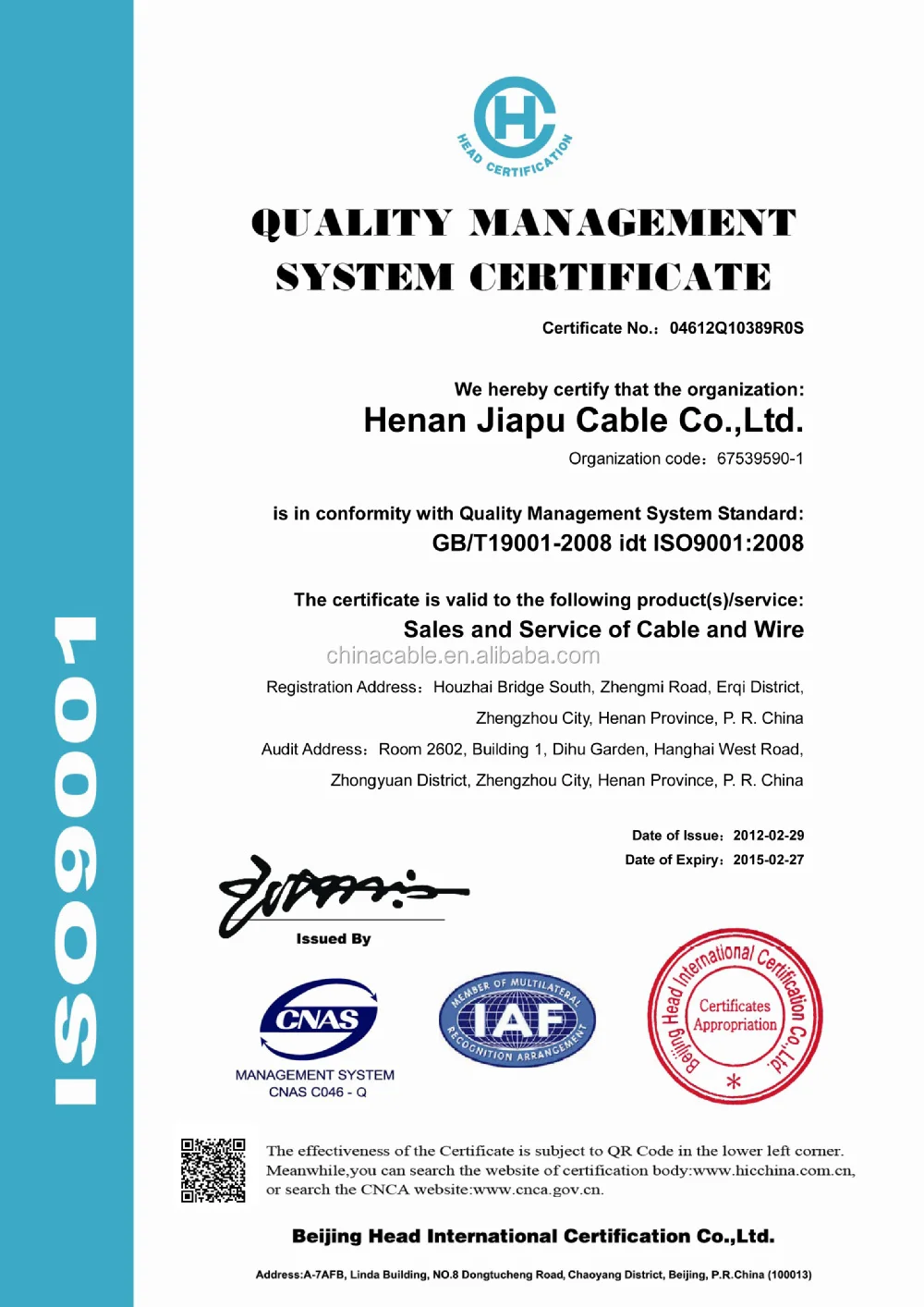

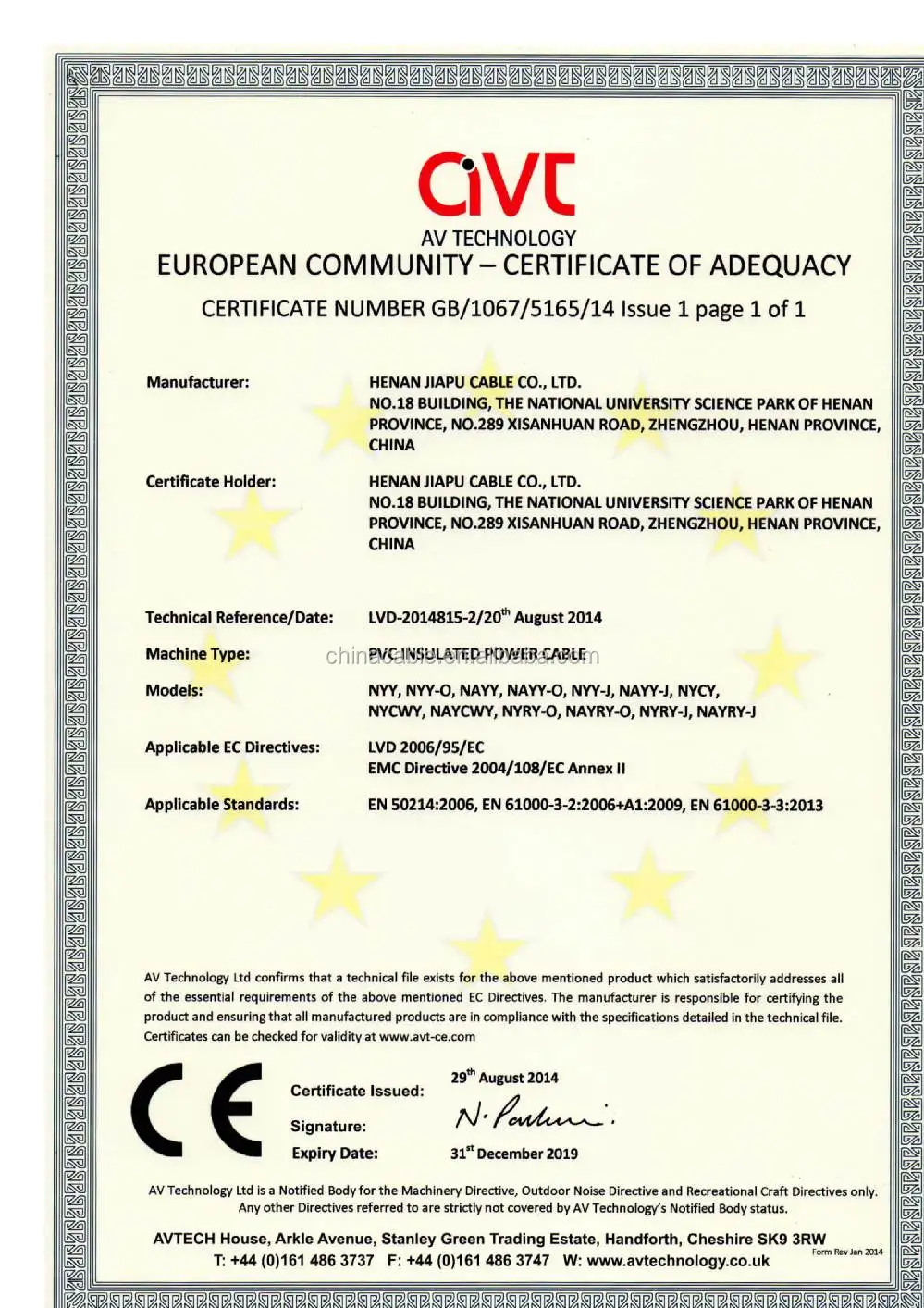

Q:Do we have certificates?
